The Meiji IM4100 is their "entry-level" Inverted Metallurgical but still a quality product that will provide years of service, This is a Brightfield only model and comes complete with Binocular viewing head, WF10X/22 eyepieces, 6V 30W Vertical Koehler Illuminator, Brightfield observation mode and simple polarization with rotatable polarizing filter (included), Incident (Reflected) Halogen Light illumination 6V, 30W, Quintuple nosepiece with Infinity Plan Achromat, 5X, 10X, 20X and 50X objectives, 203mm (X) x 229mm (Y) Attachable Mechanical Stage with ergonomic drop down control, Side mount port for C-mount adapter
Unitron's entry-level, (somewhat) transportable scope features Trinocular viewing head, WF10x/22mm focusing eyepieces Infinity M Plan Achromat LWD 5x, 10x, 20xR and semi-apo 50xR objectives on quintuple nosepiece, 5 watt variable LED illuminator, coaxial coarse and fine focusing controls, attachable mechanical stage with right hand coaxial controls, movement range 120 x 78mm ø12mm and ø25mm teardrop stage plate inserts (for fixed and mechanical stages)Simple polarizer and analyzer32mm blue, green and frosted filters and a rear carry handle for improved transportability.
The Meiji Techno IM7000 Series Inverted Brightfield Metallurgical Microscopes have Infinity-Corrected Plan 5X, 10X, 20X and 50X objectives (std.) on quintuple nosepiece, SWH10X/22 high-eyepoint eyepieces with a 25mm reticle mount, integrated 6V/30W vertical Koehler halogen illuminator with variable intensity control, plain stage 180mm x 245mm (mechanical stage optional), front- mount camera port suitable for CCD, 35mm SLR, or digital cameras with optional camera adapters LB100 Blue clear 19.5mm diameter filter in metal mount, fits 25mm filter slot, G533 Green clear, ND50 Neutral density, and Polarizing filters, 19.5mm diameter in metal mounts that fit 25mm filter slot.
(Trinocular, adapters sold separately)

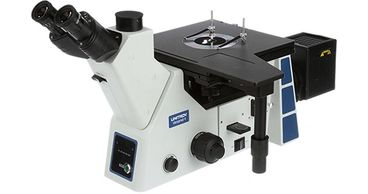

The Unitron Versamet 4 is designed to support a variety of observation methods. Two models are available; one is brightfield-only; the other is a combination brightfield/darkfield model. Both models include Trinocular viewing head, WF10x/22mm focusing eyepieces, ECO Function, 12-volt, 100- watt halogen illuminator, integrated three layer, rackless mechanical stage right hand coaxial controls, movement range 50 x 50mm ø12mm and ø25mm teardrop stage plate inserts, crescent shaped stage plate insert to allow for rotation of high magnification objectives, Simple polarizer and analyzer, Ø32mm LBD, yellow and green filters.
(Brightfield, Infinity M LWD Plan Achromat 5x,10x, 20x, and semi-apo 50x metallurgical objectives, Encoded quintuple nosepiece with DIC slot
(Brightfield and Darkfield, Infinity M LWD BF/DF Plan Achromat 5x, 10x, 20x, and semi-apo 50x metallurgical objectives, Encoded brightfield and darkfield quintuple nosepiece with DIC slot.
The Meiji Techno IM7500 Series Inverted Brightfield/Darkfield and simple Polarizing Microscope have SWH10X/22, widefield, high eye point eyepieces with 25mm reticle mount, Infinity-Corrected Brightfield/Darkfield Plan Semi-Apo BD 5X, 10X, 20X and LWD 50X objectives on side-facing quintuple nosepiece, 240mm x 184mm Mechanical Stage with 50mm x 40mm movement and drop down coaxial X-Y controls, front- mount camera port suitable for CCD, 35mm SLR, or digital cameras with optional camera adapters LB100 Blue clear 19.5mm diameter filter in metal mount, fits 25mm filter slot, G533 Green clear, ND50 Neutral density, and Polarizing filters, 19.5mm diameter in metal mounts that fit 30mm slot, A powerful 12 volt, 50 watt halogen vertical illuminator with iris and intensity adjust..
(Ergonomic head, allows eye tubes to be adjusted up and down from 10° to 50°)
(Trinocular head, adapters sold separately)
